Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue
Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue
Επικοινωνήστε

Panoramic Slope Monitoring Radar with 120° Wide Coverage 0.1mm Deformation Accuracy and 8kg Lightweight for Emergency Rescue

Τόπος καταγωγής: Κίνα Μάρκα: topsky

Λεπτομερής ενημέρωση
Μέγιστη γραμμική ταχύτητα: ≥1,52m/s, Retpless Speed Ζυγίζω: 15,5 κιλά
Μέγεθος ξεδιπλώματος: 1880 χιλιοστά Θερμοκρασία αποθήκευσης: -45°C ∼65°C·
Σωματικό βάρος: 16 κιλά Υγρασία: 0-100%
Λειτουργία λειτουργίας: :“Ισορροπία εδάφους” / “Διακρίνω” Γωνία: 120degree
Μνήμη: 8g SD Σχοινιά: 3/4/5mm Dia*2m
Λειτουργία προϊόντος f: 2.4GHz Ονομαστική ισχύς: 7,5 KW
Ποσό της οριακής απόκλισης: ≤0.7% Μακρινό μέγεθος: 278*184*43mm
Εύρος μέτρησης: 0-550mg/100ml
Επισημαίνω:

120° Wide Coverage Slope Monitoring Radar

,

0.1mm Deformation Accuracy Panoramic Radar

,

8kg Lightweight Emergency Monitoring Radar

Περιγραφή προϊόντων

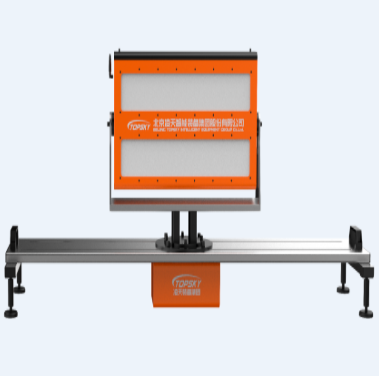

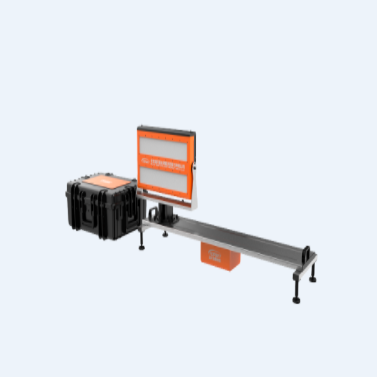

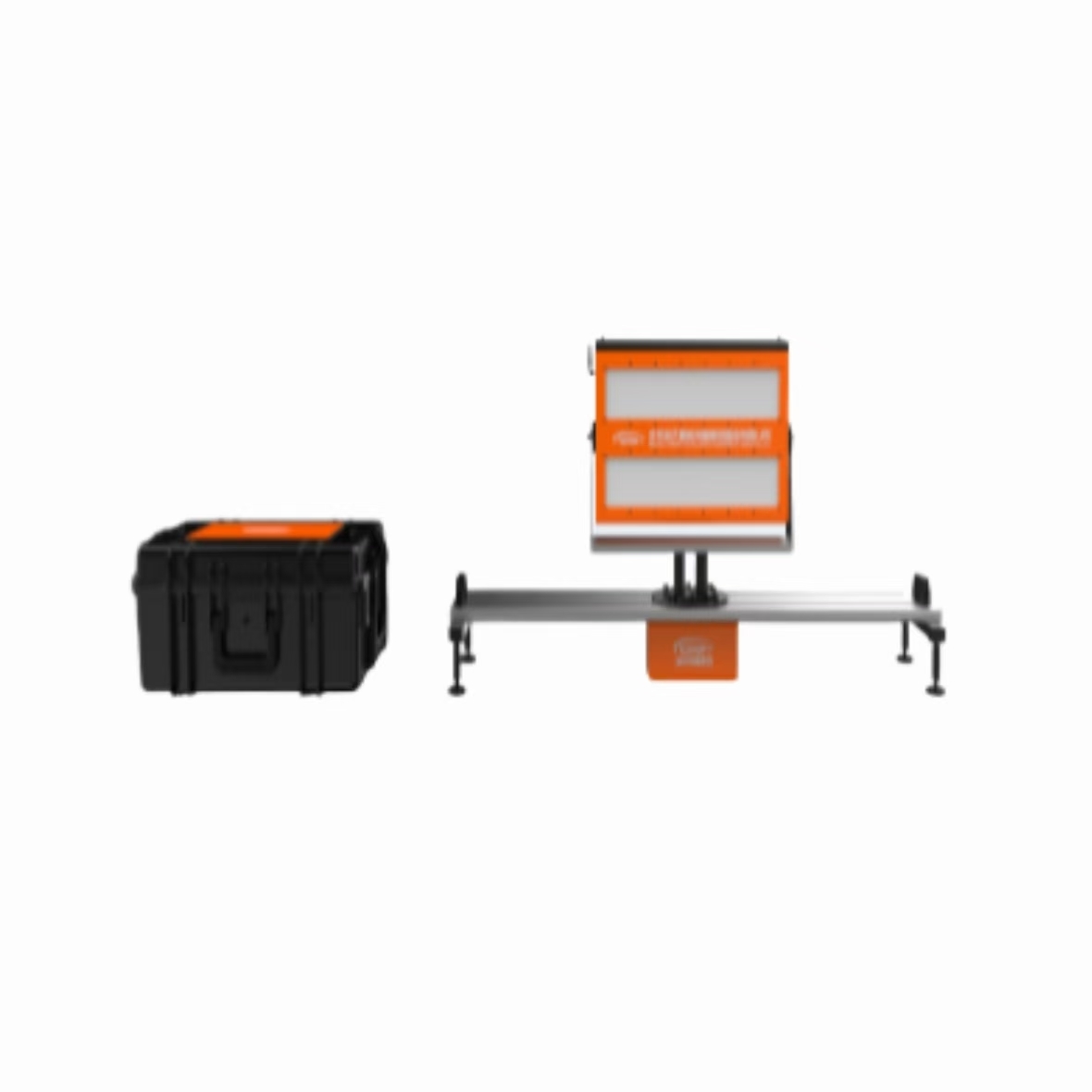

PSR-5000JH Emergency Ultra-Portable Slope Monitoring Radar
The PSR-5000JH emergency ultra-portable slope monitoring radar utilizes circular synthetic aperture radar technology with wideband frequency modulated continuous wave signals and phase difference interferometry. This advanced system provides 120° wide coverage with linear slide rail capability, delivering precise deformation measurement with exceptional all-weather and all-time environmental adaptability.

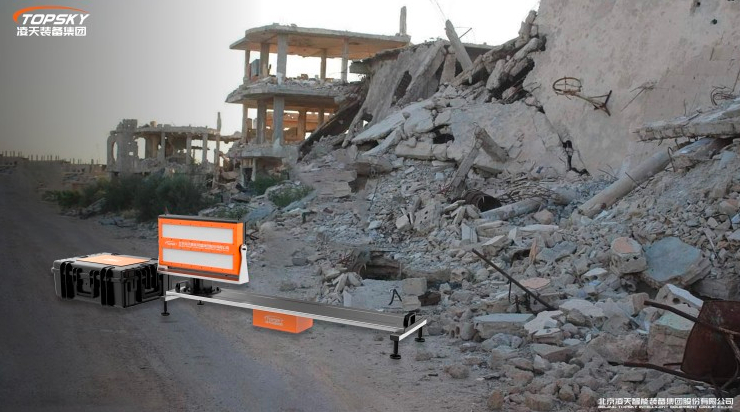

Specifically designed for rapid emergency response requirements, this lightweight, portable system features industry-leading volume, weight, and power consumption metrics. The compact 8kg device employs an edge computing architecture with integrated information processing, positioning, orientation, and wireless communication capabilities, enabling single-person deployment and rapid operational readiness at disaster sites.
Applications
Open Pit Mines
Geological Landslides & Collapses
Emergency Rescue Operations
Water Conservancy Dams
Urban Subsidence Monitoring
Subway Transportation
Large Bridges
High-Rise Buildings
Wind Turbine Towers
Railway Slopes
Key Functions & Capabilities
  • High-Precision Measurement: 0.1mm deformation accuracy with maximum data update rate of 30 seconds per cycle
  • All-Weather Operation: Microwave penetration capability enables 24/7 monitoring unaffected by rain, snow, fog, smoke, or dust
  • Comprehensive Coverage: 120° mobile rail-type full-circle environmental monitoring using circular imaging and continuous-wave radar technology
  • Edge Computing Architecture: Complete information processing within the device body with satellite compass and wireless router compatibility for rapid single-machine deployment
  • Flexible Positioning: Remote-controlled electric pitch angle adjustment for monitoring in high-altitude and mountainous terrain with significant elevation differences
  • Multi-Platform Monitoring: B/S architecture software supports real-time LAN/WiFi monitoring on laptops and remote 4G/5G mobile network cloud-based monitoring
  • Advanced Algorithms: Unique adaptive atmospheric disturbance compensation with less than 2mm daily error
  • Intelligent Alert System: Adaptive monitoring and early warning with manual/automatic monitoring point addition and 4-level configurable audible, SMS, and email alerts
  • Rugged Design: IP65 protection rating with operational capability down to -45°C, supporting continuous outdoor operation without additional protection
