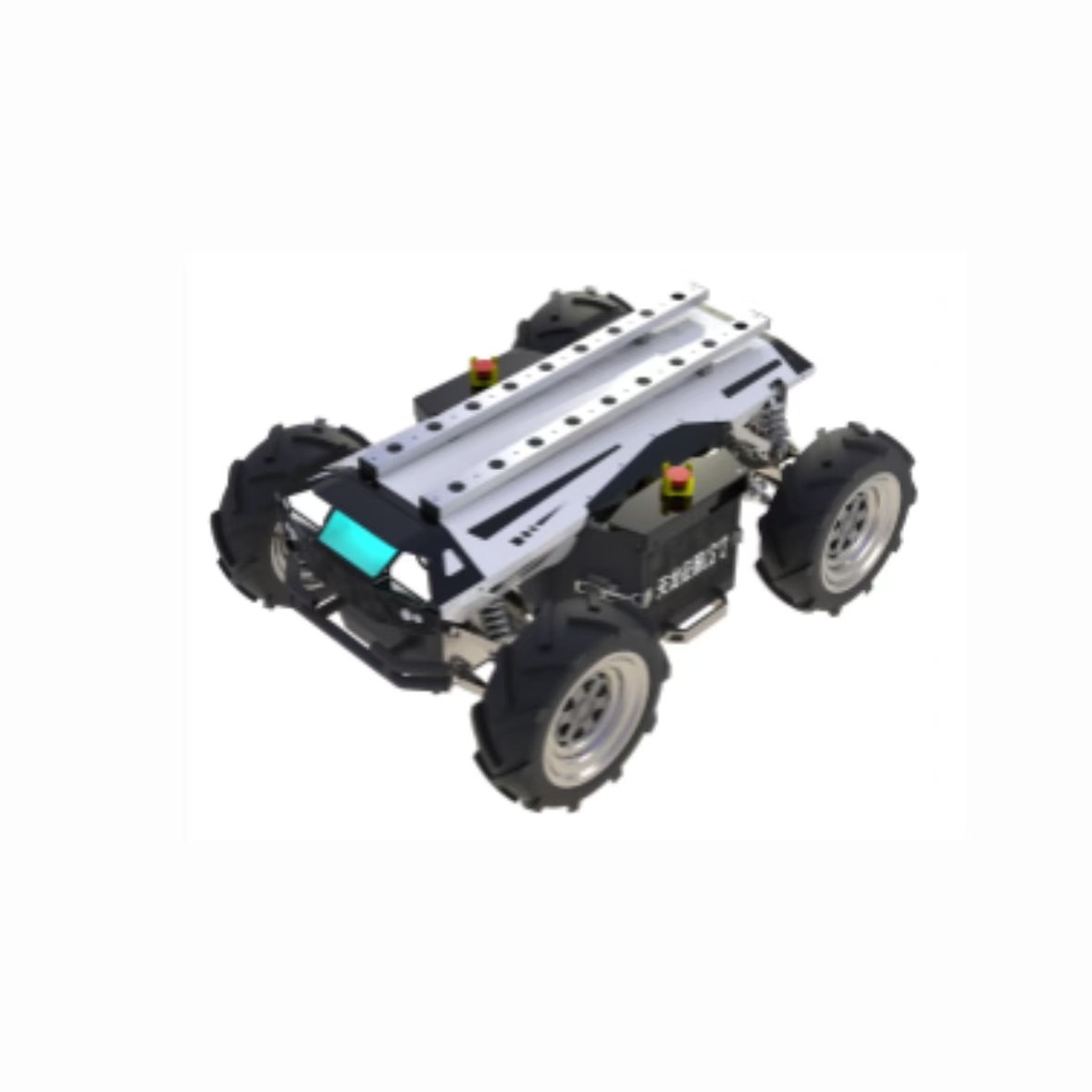

Ackermann wheeled robot chassis

Minimum Order Quantity : 2 Τιμή : USD28000/PCS
Delivery Time : 5-8 WEEK DAYS Payment Terms : T/T
Place of Origin: CHINA Μάρκα: TOPSKY

Περιγραφή προϊόντων

Overview:
The chassis of the Ackermann wheeled robot uses lithium battery power as the robot's power source, and the robot is remotely controlled using wireless remote control. Complex operation modes can be customized, and the main control provides serial port/standard CAN bus as the communication interface. The whole machine adopts Ackermann steering and front and rear double wishbone independent suspension structure, with IP65 dust and water resistance, and can operate in various complex environments. At the same time, the whole machine adopts a modular design, with four independent suspensions, left and right electrical control boxes, and batteries that can be quickly disassembled, maintained, and replaced. It can carry multiple devices to replace humans for efficient operations.


Features:
Can be equipped with various instruments and equipment, such as robotic arms, binocular gimbals, LiDAR, high-definition cameras, etc. for secondary development
Can carry heavy objects weighing less than 120kg for transportation and transfer

Suitable for industrial parks, highways, stations, airports and other places



Specification:


Robot Machine:
1. Name: Ackermann wheeled robot chassis
2. Basic function: Mobile platform can carry devices
3. Protection level: Robot machine protection level IP65
4. Power: electric, lithium battery
5. Supply voltage (DC): 48V
6. Size: ≤ Length 1015mm × Width 740mm × Height 445mm
7. Walking mechanism: wheeled
8. Tire size: 13 * 5-6
9. Tire style: Off road tires (replaceable road tires, grass tires)
10. Minimum turning radius: ≥ 1.8m
11. Weight: ≤ 73kg
12. Rated load capacity: 120kg
13. Maximum speed in a straight line: ≥ 2.0m/s (continuously variable transmission)
14. Straight running deviation: ≤ 5%
15. Braking distance: ≤ 0.3m
16. Ground clearance height of chassis: ≥ 100mm
17. Climbing ability: ≥ 70% (or 35 °) (off-road tires)
18. Vertical obstacle crossing height: ≥ 120mm
19. Water wading depth: ≥ 220mm
20. Continuous walking time: ≥ 2h
21. Wireless remote control distance: ≥ 100m (open space)
Remote control terminal configuration parameters:
1. Dimensions: ≤ Length 200mm x Width 210mm x Height 110mm (including joystick height)
2. Whole machine weight: 0.7kg
3. Power supply voltage (DC): 12V
4. Working hours: 8h
5. Basic function: It can control the robot's forward, backward, steering and other movements; The data transmission method is wireless transmission using encrypted signals
6. Expanded functions: autonomous navigation, real-time positioning, obstacle avoidance and collision avoidance
7. Walking control function: Yes, two joysticks enable the robot to move forward, backward, left turn, and right turn flexibly
8. Auxiliary tool: lanyard
